No Solder ,wire or PCB all 3d printed in Carbon based PLA
- No switches to wear out even on the 9 v battery you can leave it the circuitry sleeps in standard light conditions
- Works on any voltage from 3-9 Volts – 9v , AA, AAA adapters sold separately
- Checks batteries pick a type and point at a blub or at window light
TechFax:
*Active IR sources are not visible .

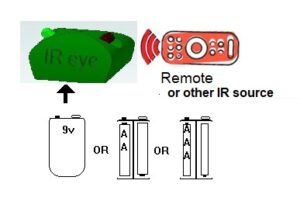

Point at Remote or InfraRed source and the LED will light.
How to test for IR :
- Plug in a battery and hold up the sensor to the IR source
- Push button/trigger on TV remote /Source
- The LED will glow in proportion to the intensity of the source.
To check batteries: Plug-in batteries-9v, AAA, AA. Hold up to sun or incandescent blub. If the batteries are good the LED will light

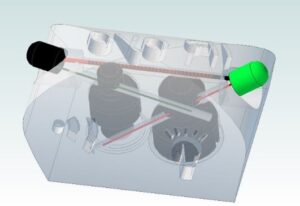

X-Ray Assembled View
Exploded View
Assembly Overview
3 d print conductive components are inserted after the sensor and LED
Then they are compressed on a flat surface.
The compression fuses the conductive plastics to the components
What’s in the kit
- 4 ft of Green 1.74mm PLA plastic
- Green Led
- IR detector
- Assembly Instructions
